Wallbarn Fixing Dowels Thermomaster D-H – D8mm – L170mm

Wallbarn Fixing Dowels Thermomaster D-H – D8mm – L170mm

Wallbarn offers a number of fixings and anchors suitable for a variety of uses. These robust and durable products are designed to help installers create solid fixings when applying sheet material to the horizontal or vertical surface. They are suitable for fixing insulation boards, plasterboard, ply and plastic sheet membranes to timber and masonry.

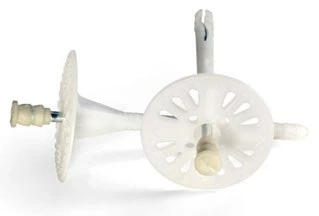

The Fixing & Anchor pins comprise a polypropylene sleeve or sheath with an integrated circular flange / washer around the top. There is a separate pin also made from plastic which is driven into the sheath to penetrate the structure.

Wallbarn offers three ranges, the “D” Range, the D Plus range” and the “D H Range”. Each range has different strength and anchoring specifications; which means different codes can be used for different applications. Users should review the technical data given below to be assured the product chosen matches and exceeds the anchoring strength and depth required for the project.

When fixing insulation boards to vertical plane it is recommended that a quantity of 8-12 pieces per m² are installed.

It comprises a plastic sleeve or sheath with a circular flange / washer around the top. There is a separate pin also made from plastic which is driven into the sheath to create the fixing.

These fixings are designed for installations where a far greater tension load is required. The sheath and sleeve is made from polymide plastic but the nail is rust-proof metal with an integrated polymide cap.

The D H fixings is designed to be screwed into the structure. This will give a much firmer fixing on the vertical or horizontal plane

The sleeve diameter 8mm. This D H Range is sold in full box quantities of 200 pieces per box.
