Wallbarn Fixing Dowels Thermomaster D 10mm – L140mm

Wallbarn Fixing Dowels Thermomaster D 10mm – L140mm

Wallbarn offers a number of fixings and anchors suitable for a variety of uses. These robust and durable products are designed to help installers create solid fixings when applying sheet material to the horizontal or vertical surface. They are suitable for fixing insulation boards, plasterboard, ply and plastic sheet membranes to timber and masonry.

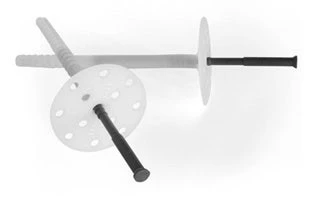

The Fixing & Anchor pins comprise a polypropylene sleeve or sheath with an integrated circular flange / washer around the top. There is a separate pin also made from plastic which is driven into the sheath to penetrate the structure.

Wallbarn offers three ranges, the “D” Range, the D Plus range” and the “D H Range”. Each range has different strength and anchoring specifications; which means different codes can be used for different applications. Users should review the technical data given below to be assured the product chosen matches and exceeds the anchoring strength and depth required for the project.

When fixing insulation boards to vertical plane it is recommended that a quantity of 8-12 pieces per m² are installed.

This is the standard anchor fixing product offered by Wallbarn. It is designed to hammer into the structure.

It comprises a plastic sleeve or sheath with a circular flange / washer around the top. There is a separate pin also made from plastic which is driven into the sheath to create the fixing.

Sleeve diameter is 10mm. It is sold in full box quantities of 250 pieces.
